DIMENSIONS
Overall Length: 21′ 7″ | 259”
Overall Width (w/Fenders): 7′ 11″ | 95”
Exterior Box Length: 15′ 4″ | 184”
Exterior Box Width: 6′ 1″ | 73”
Exterior Height (w/AC): 9′ 2″ | 110″
Exterior Height (w/o AC): 8′ 3″ | 99”
Interior Height: 6′ 8.5″ | 80.5”
Ground Clearance: 10.75”
Rear access door: 75” x 68”, hinged upward
WEIGHTS & RATINGS
Dry Weight: 4,420 lbs (w/LP and batteries)
GVWR: 5,000 lbs
Cargo Carrying Capacity: 580 lbs
Tongue/Hitch Weight: 440 lbs
Coupler: 2” ball, 18”-20″ ball height
Axle Weight Rating: 5,000 lbs
Brake rating: 4,400 lbs electric
Wheels (2); 15×6 SH split spoke aluminum; 5 on 4.5
Tire Size: 225/75R15, 10-ply Load Range E
CAPACITIES
Fresh Water Tank: 30 gal
Grey Water Tank: 32 gal

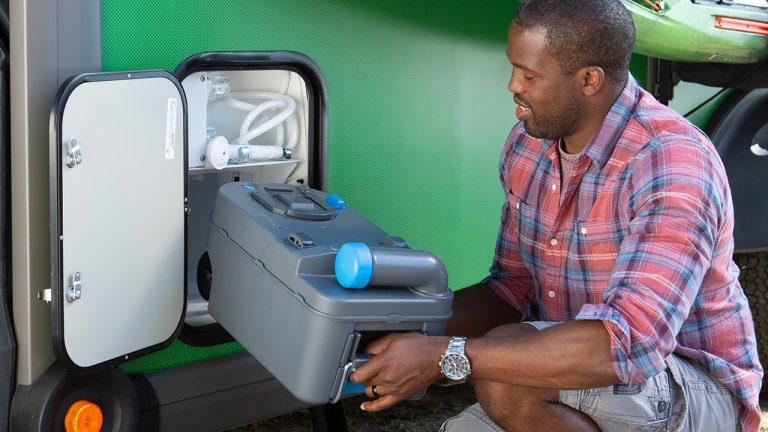

Electric Flush Cassette Toilet: 4.75 gal
Propane Tank (x2): 20 lb | 4.7 gal
Easy-slide Front storage box: 15 cu ft

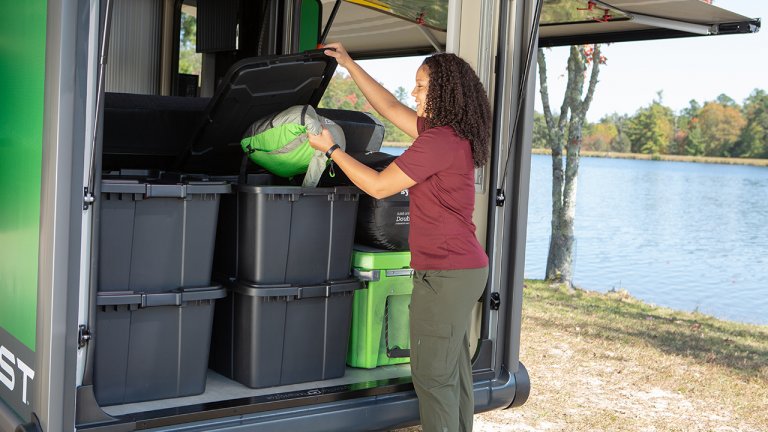

Interior Storage areas: 35 cu ft
Sleeping Capacity: 4 people on 2 Queen beds
Solar Panels: 800 watts
HEATING/COOLING
Portable AC/DC Fridge/Freezer: Truma 69 liter
Furnace & Water Heater: Truma Combi Eco 10L (7,500 & 14,300 BTU/h operating levels)
Air Conditioner: Dometic 11K BTU low profile
Roof fans (2): 900 CFM, flush-mounted

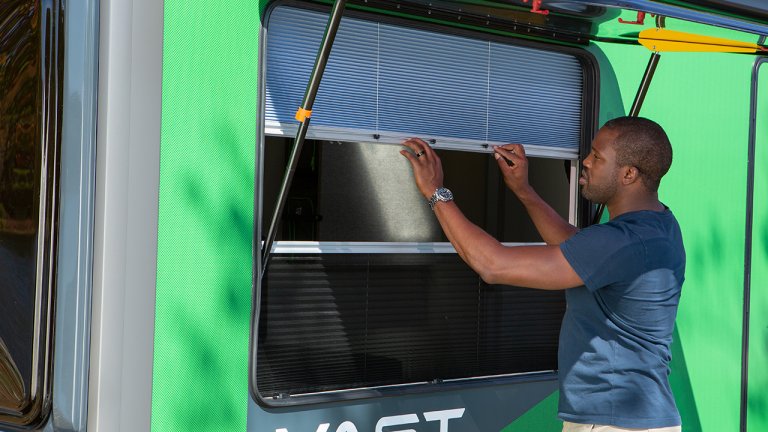

3-position skylight with darkening/fly screen
The largest thermoformed, hinged, gas assist lockable windows in the RV industry
COOKING

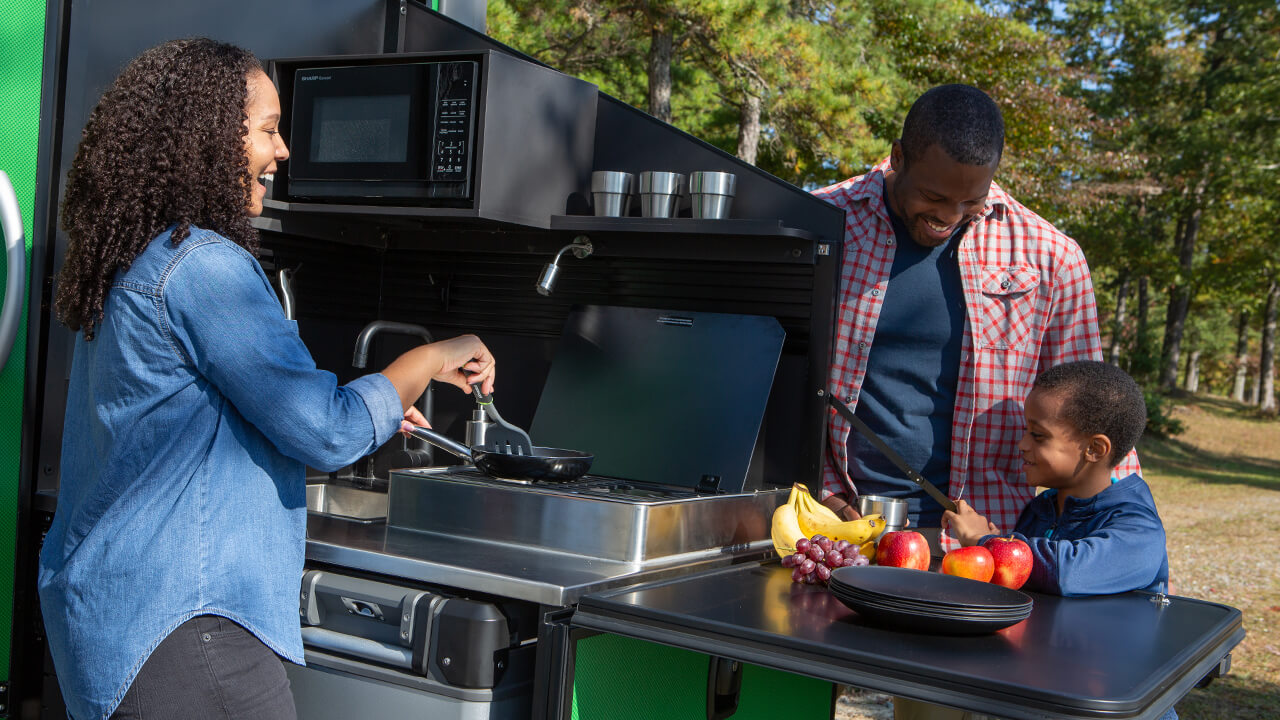

Slide-out kitchen
Stainless steel sink, countertop and shelving
2 burner stove w/cast iron grates
Microwave oven: 0.7 cu ft | 700W
Flip-up additional countertop
Smoke / carbon monoxide detector
SLEEPING
Bed #1: Residential Queen-sized EuroLoft Bed lift w/880-lb capacity stores in ceiling until needed
SylvanSport Cloud Layer mattress w/gel top
Bed #2: Lounge converts to second queen-size bed
PLAYING
Airline cargo style side mount rails
Spring loaded side-mount boat racks

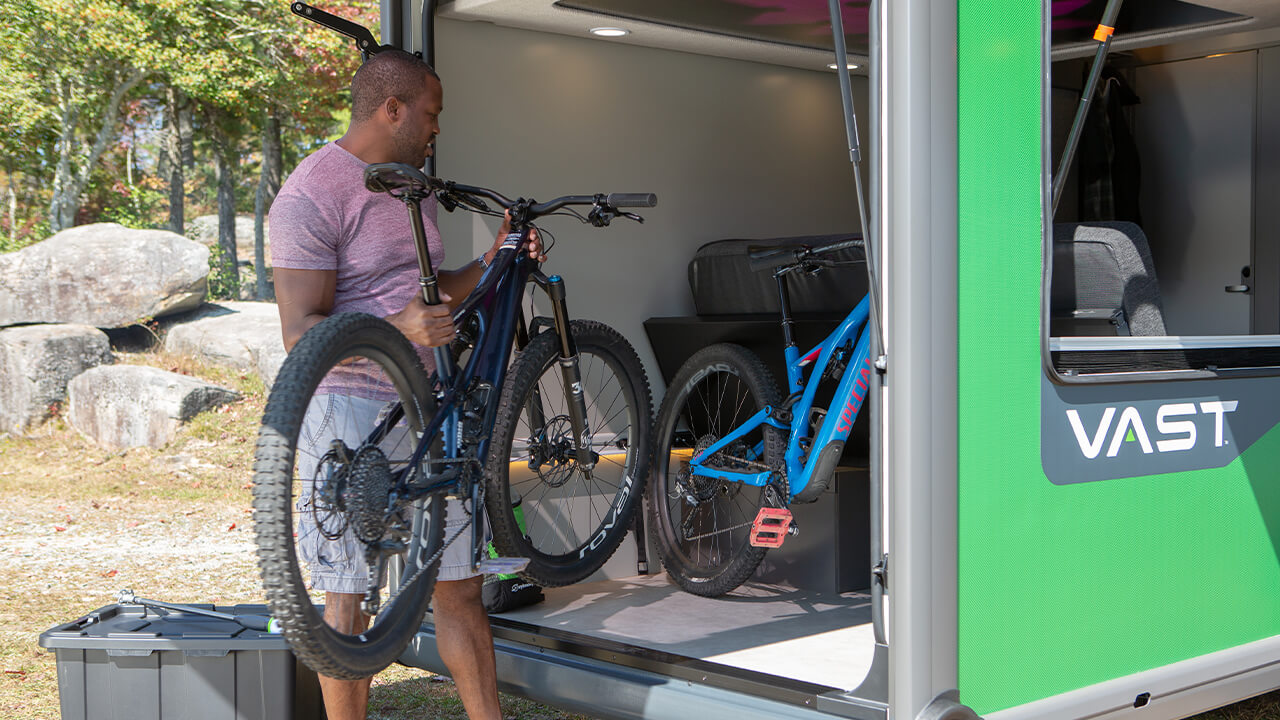

Interior bike-mounting system
Awning: 168 in (14 ft), with wind sensor/auto-retract
KEEPING IT CLEAN
Full size residential shower, when kitchen is deployed to outside
Fold-down sink in bathroom for space saving
Water filtration system
Exterior shower kit
